P/N | PS-TPD-850FNFAGx-H |
---|---|
WATTS | 850W |
MODEL | TTP-850AH2FKG |
MAX. OUTPUT CAPACITY | 850W |
COLOR | Black |
DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
PFC (POWER FACTOR CORRECTION) | Active PFC |
POWER GOOD SIGNAL | 100-250 msec |
HOLD UP TIME | > 17msec |
INPUT CURRENT | 10A Max. |
INPUT FREQUENCY RANGE | 50Hz - 60Hz |
INPUT VOLTAGE | 100 - 240Vac |
OPERATING TEMPERATURE | 0°C to + 45°C |
OPERATING HUMIDITY | 5% to 85%,non-condensing |
STORAGE TEMPERATURE | -40°C to + 70°C |
STORAGE HUMIDITY | 5% to 95%, non-condensing |

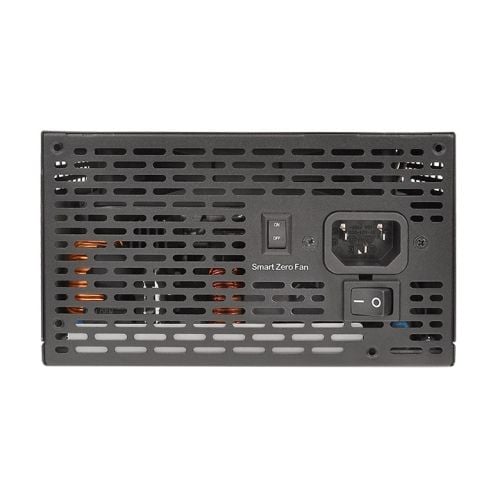

COOLING SYSTEM | 12cm FDB Fan |
EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input. |
MTBF | 100,000 hrs minimum |
SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
PCI-E 6+2PIN | 4 |
PCIE 12+4PIN | 1(450W) |
