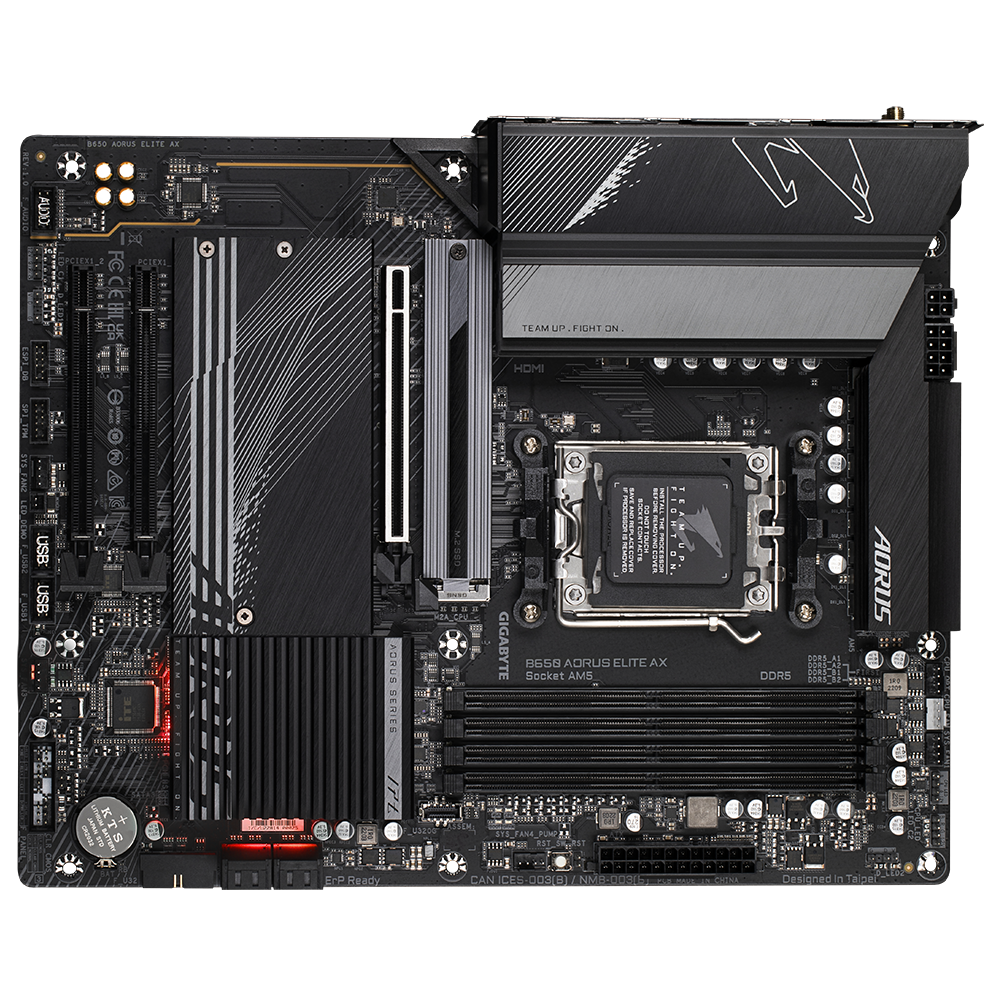

Mainboard Gigabyte B650 Aorus Elite AX DDR5

Performance

Connectivity

8+4 Solid Pin CPU Power Connector

Twin 14+2+1 Digital VRM Design

1. 70A Smart Power Stage*
2. 8-Layer 2X Copper PCB
3. PCIe 5.0 Ready Low Loss PCB

* Power Stage maximum current capacity is based on VCORE Phase.

Advanced Thermal Design

1. Fully Covered MOSFET Heatsinks
2. 6 mm Mega-Heatpipe
3. 7 W/mk Thermal Conductivity Pad
4. Integrated I/O Shield

Design Ready for PCI Express 5.0

1. 1*PCIe 5.0 x4 M.2 & 2* PCIe 4.0 x4 M.2 with M.2 Thermal Guard
2. 1*PCIe 4.0 x16 with Ultra Durable™ Armor
3. 2*PCIe 3.0 x1

M.2 EZ-Latch

Socket AM5 Supports AMD Ryzen™ Series Processors

Dual Channel SMD DDR5 Memory

24 Pin ATX Power Connector

Multi-key

1. Multiple function set by BIOS
2. Reset/RGB Switch/Direct to BIOS/Safe Mode

PCIe EZ-Latch

Smart Fan 6

1. 6*PWM/DC Fan Headers
2. Dual Fan Curve Mode

Unparalleled Performance

Twin Digital VRM Design

PCIe 5.0 Design

EXPO & XMP Support

OC GUIDE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Outstanding Thermal Design

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Thermal Design

Fully Covered MOSFET Heatsink

M.2 Thermal Guard

Smart Fan 6

CONNECTIVITY

802.11ax Wi-Fi 6E

2.5GbE LAN

Front USB-C^® 20Gb/s

Rear USB-C^® 10Gb/s

Hi-Fi Audio

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.

Personalization

UEFI BIOS

GIGABYTE Control Center

Multi-Key

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

DIY Friendly

Q-Flash Plus

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Key Feature

• AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
• Unparalleled Performance：Twin 14*+2+1 Phases Digital VRM Solution
• Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel^® XMP Memory Module Support
• Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
• Fully Covered Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
• EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：DP, HDMI, Rear USB-C^® 10Gb/s, Front USB-C^® 20Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card


  * 7+7 phases parallel power design
